Heavy-Duty & Reinforcement Tapes

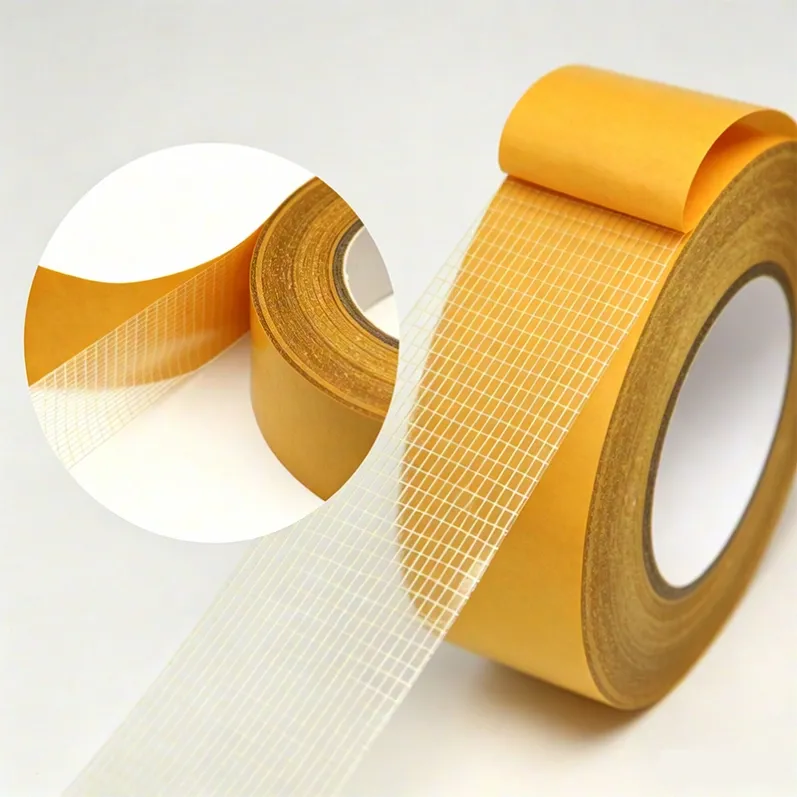

Heavy-Duty Double-Sided Cross-Weave Filament Tape - Weatherstripping & Mounting
High-tack double-sided cross-weave filament tape manufactured with a fiberglass-reinforced PET backing and a premium glassine release liner. Designed for extreme mounting tasks on rough surfaces. Bonds aggressively to EPDM rubber, PU sealing strips, foam profiles, and PVC sports flooring. Available in rubber and acrylic adhesive options for global industrial distributors.
Manufactured with a PET film and bi-directional fiberglass mesh backing, coated on both sides with an aggressive adhesive, and protected by a release liner (Glassine or White PET). Designed for heavy-duty structural mounting and continuous weatherstrip bonding.
Key Features
- Extreme Bonding Power: Formulated to grip rough, textured, and irregular surfaces immediately upon contact.
- Bi-Directional Strength: The cross-weave fiberglass reinforcement prevents stretching or snapping during heavy-duty mounting tasks.
- Versatile Adhesion: Sticks reliably to challenging substrates including EPDM rubber, foam profiles, plastics, and heavy leather.
- Temperature Tolerance: Selected acrylic grades resist high heat up to 120°C, operating perfectly in demanding industrial environments.
Industrial Applications
- Door & Window Weatherstripping: Mounts EPDM, PU, and fireproof rubber sealing strips securely to window frames and automotive doors.
- Flooring Installation: Holds PVC sports flooring, heavy carpets, and artificial turf firmly in place against high foot traffic.
- Foam & Insulation Mounting: Bonds acoustic foam panels and insulation materials to rough building structures.
- Leather & Luggage Manufacturing: Provides hidden, high-strength structural bonding for heavy leather goods and luggage assembly lines.
Technical Data Sheet (TDS) by Model
Model Number | Adhesive Type | Thickness | Peel Adhesion | Holding Power | Tensile Strength | Temp Resistance |
|---|---|---|---|---|---|---|
BP-DS20-R | Synthetic Rubber | 0.20 mm | 22 N/25mm | ≥ 36 h | 250 N/25mm | -5°C to 80°C |
BP-DS28-R | Synthetic Rubber | 0.28 mm | 26 N/25mm | ≥ 36 h | 300 N/25mm | -5°C to 70°C |
BP-DS30-R | Synthetic Rubber | 0.30 mm | 26 N/25mm | ≥ 36 h | 300 N/25mm | -5°C to 70°C |
BP-DS23-A | Acrylic PSA | 0.235 mm | 18 N/25mm | ≥ 24 h | 250 N/25mm | -10°C to 120°C |
BP-DS16-A | Acrylic PSA | 0.16 mm | 16 N/25mm | ≥ 48 h | 250 N/25mm | -10°C to 120°C |
Customization & OEM
Private Label & Dimensions:
- Available Widths: Custom slit to exact distributor requirements.
- Available Lengths: Finished rolls and bulk spools available.
- Branding Services: We print company logos directly on the inner paper cores and outer shipping cartons.
Packaging & Shipping
Wholesale Logistics:
- Retail Formatting: Individual rolls wrapped in shrink film with release liner tabs for easy peeling.
- Master Carton: Packed in standard export cartons designed for heavy stacking.
- Palletizing: Cartons are securely stacked, stretch-wrapped, and strapped on standard pallets.
- Consolidation: Mix double-sided filament tapes with MOPP strapping tapes or heavy-duty duct tapes in a single shipment.
