Heavy-Duty & Reinforcement Tapes
High-Strength Mono-Directional Filament Tape - Fiberglass Reinforced
High-tensile mono-directional filament tape manufactured with a PET film backing reinforced with continuous fiberglass yarn. Formulated with hot melt, synthetic rubber, or acrylic adhesive options, this tape delivers extreme tensile strength along the longitudinal axis. Designed for heavy-duty carton reinforcement, metal pipeline bundling, and securing wood furniture during transit. Available in multiple technical grades for global wholesale buyers.
Specifications
- Backing
- PET
- Adhesive
- Rubber / Hot Melt / Acrylic
- SKU
- BP-FG
Manufactured with a PET film backing reinforced with continuous mono-directional glass yarn. Designed specifically to handle heavy loads, extreme physical tension, and demanding industrial strapping applications.
Key Features
- Extreme Tensile Strength: The mono-directional continuous glass filaments prevent snapping and breaking under heavy longitudinal loads.
- High Impact Resistance: Absorbs physical shocks during rough handling and ocean freight transit.
- Aggressive Bonding: Rubber and hot melt adhesive options stick instantly to corrugated cartons, metals, and plastics.
- Grade Variations: Selected tapes resist temperatures up to 120°C or provide clean removal for temporary bundling tasks.

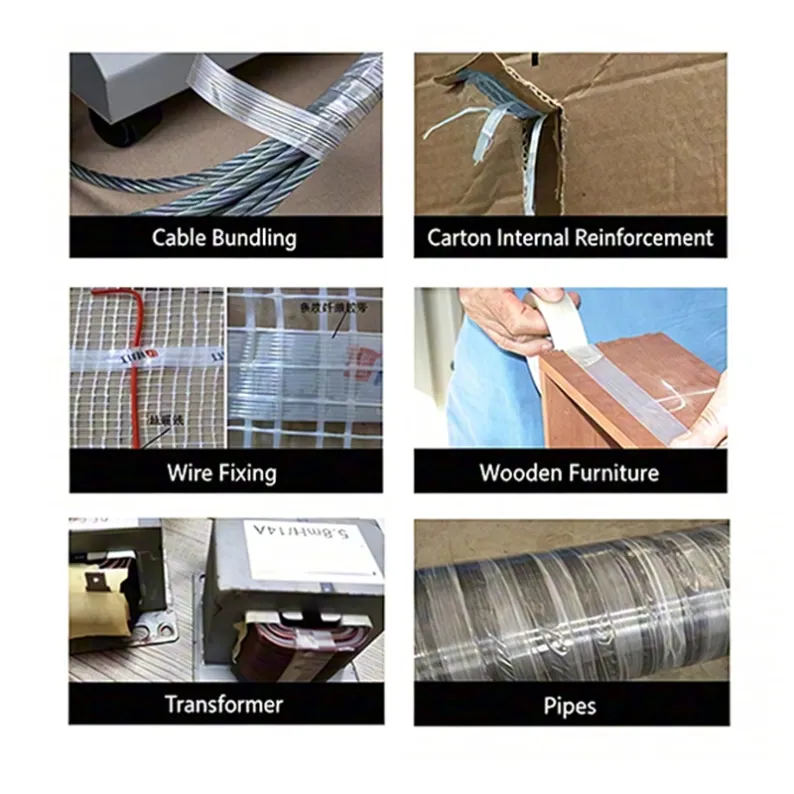

Industrial Applications
- Heavy-Duty Carton Sealing: Secures oversized or overweight boxes to prevent bursting during international shipping.
- Metal & Pipe Bundling: Straps heavy metal pipes, steel coils, and industrial cables tightly without snapping.
- Furniture & Appliance Securing: Holds loose parts, appliance doors, and wooden furniture components firmly in place to prevent transit damage.
- Palletizing: Wraps around pallets to stabilize heavy inventory during ocean freight and warehouse storage.
Technical Data Sheet (TDS) by Model
All models feature a PET + Fiberglass backing structure.
Model Number | Adhesive Type | Thickness | Peel Adhesion | Holding Power | Tensile Strength | Temp Resistance |
|---|---|---|---|---|---|---|
BP-FG14-H | Hot Melt | 0.14 mm | 18.2 N/25mm | ≥ 36 h | 500 N/25mm | -5°C to 70°C |
BP-FG10-R | Synthetic Rubber | 0.10 mm | 23.0 N/25mm | ≥ 36 h | 550 N/25mm | -5°C to 70°C |
BP-FG14-R | Synthetic Rubber | 0.14 mm | 25.0 N/25mm | ≥ 36 h | 850 N/25mm | -5°C to 70°C |
BP-FG16-R | Synthetic Rubber | 0.16 mm | 22.0 N/25mm | ≥ 48 h | 1250 N/25mm | -10°C to 80°C |
BP-FG15-A | Acrylic PSA | 0.15 mm | 16.0 N/25mm | ≥ 24 h | 950 N/25mm | -5°C to 120°C |
Customization & OEM
Private Label & Dimensions:
- Available Widths: Custom slit to exact distributor requirements.
- Available Lengths: Finished rolls and jumbo rolls available.
- Branding Services: We print company logos directly on the inner paper cores and outer shipping cartons.
Packaging & Shipping
Wholesale Logistics:
- Retail Formatting: Individual rolls wrapped in shrink film.
- Master Carton: Packed in standard export cartons designed for heavy stacking.
- Palletizing: Cartons are securely stacked, stretch-wrapped, and strapped on standard pallets.
- Consolidation: Mix mono-directional filament tapes with standard carton sealing tapes or PE protective films in a single shipment.
